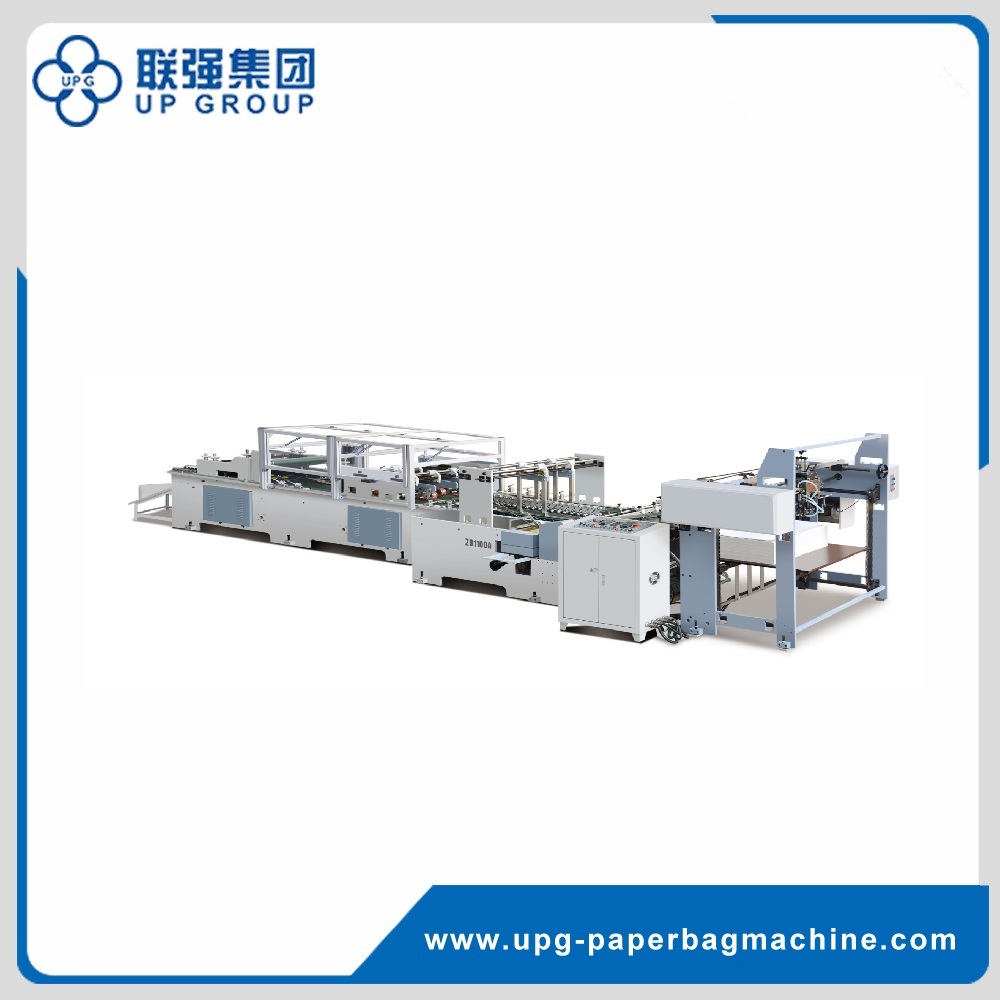

LQ-Z1100AS Semi Automatic Laminated Paper Bag Tube Forming Machine

Availability:
Quantity:
  • LQ-Z1100AS

  • LQ

LQ-Z1100AS

Sheet-feeding Bag Tube Forming Machine

Performance

LQ-Z1100AS sheet feeding bag tube forming machine is suitable for mass production of the paper bags with special paper and other different types of polished and laminated paper (need creased sheet paper as raw material). This equipment can be your first  choice for processing high-grade and luxury handbags. The paper is automatically delivery by feeder (speed can be regulated by variable frequencies), then automatically positioned by the line aligning system, eventually output paper bag tube through gluing, tube folding and impressing process. This machine uses a number of proprietary technologies by which handbag forming precise can be  higher, quicker and control adjustment more convenient.

This machine adopts the precise automatically positioning system that the speed can be regulated by variable frequencies. The machine can save your large time and meet your personalized demand because it equipped with a digital display screw rod adjustment function which can adjust accurately when you want to change the specification of products.


Specification


Max. Sheet (L x W)

1020x600mm

Min. Sheet(L x W)

600x350mm

Sheet weight

150g-350g/m2

Bottom width

60-150mm

Total power

6.5kw

Machine size

8075x1960x1730mm

Speed

50-80 bags/min

Total weight

4T

Glue Type

Hot-melt glue



Suitable paper

Suitable Paper: Kraft paper, art paper (including film laminated paper)


A

B

C

D

Max. Size

1020

600

150

350

Min. Size

600

350

60

230


Technological process

35
