LQ---

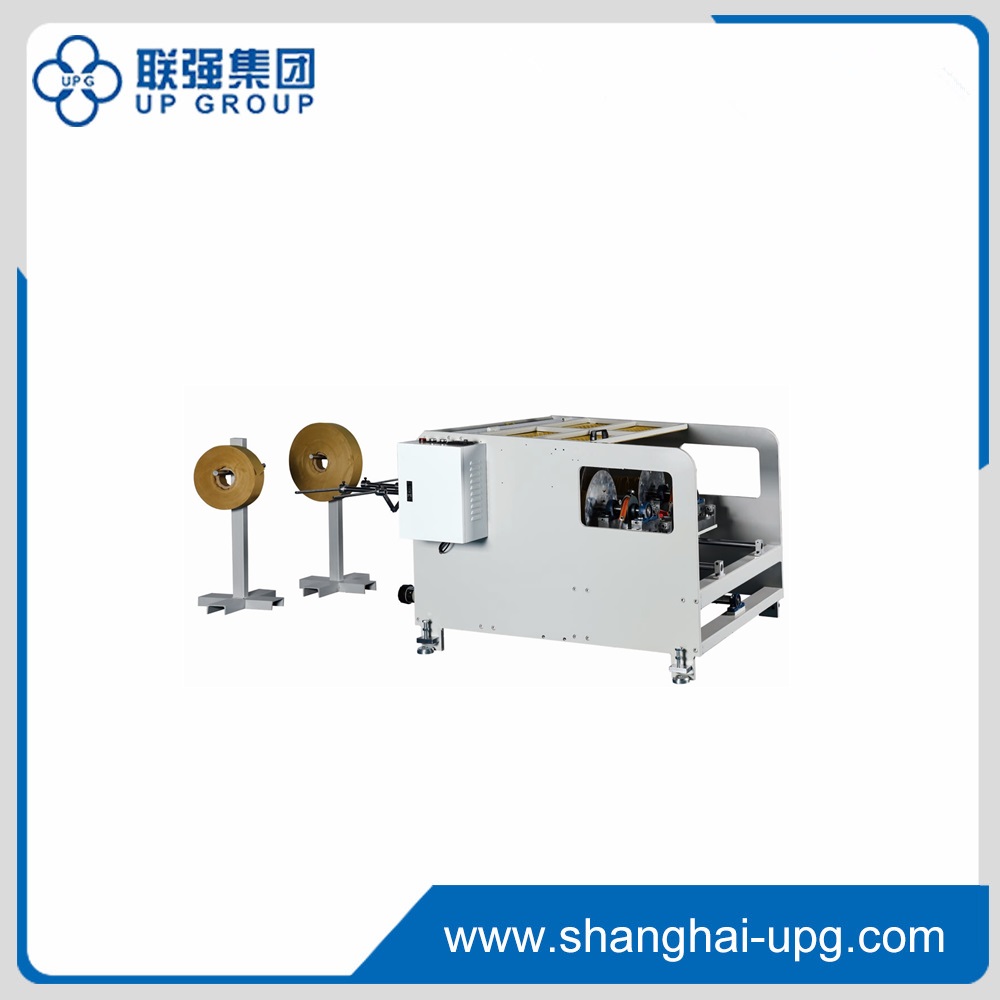

This machine is mainly supporting high-speed hand the machine and paper bag machine, able to quickly produce a circular rope, so as to higher speed the machine to provide raw materials. The machine with a narrow web of raw materials, through the high-speed rotation of the axis of the machine, so that the paper twisted into a rope, and in the form of rope to save. The user can adjust the diameter of the rope, so as to meet different production requirements.
Technical Parameters
Core Diameter of Raw Rope Roll | Φ76 mm(3'') |
Max. Paper Rope Diameter | 700mm |
Paper Roll Width | 20-100mm |
Paper Thickness | 20-60g/㎡ |
Paper Rope Diameter | Φ2.5-6mm |
Max. Rope Roll Diameter | 300mm |
Max. Paper Rope width | 300mm |
Production Speed | 20-40m/min |
Power Requirements | 220V |
Total Power | 1.5KW |
Total Weight | Approx.700KG |
Overall Dimension | L1580*W1440*H930mm |
This machine is mainly supporting high-speed hand the machine and paper bag machine, able to quickly produce a circular rope, so as to higher speed the machine to provide raw materials. The machine with a narrow web of raw materials, through the high-speed rotation of the axis of the machine, so that the paper twisted into a rope, and in the form of rope to save. The user can adjust the diameter of the rope, so as to meet different production requirements.
Technical Parameters
Core Diameter of Raw Rope Roll | Φ76 mm(3'') |
Max. Paper Rope Diameter | 700mm |
Paper Roll Width | 20-100mm |
Paper Thickness | 20-60g/㎡ |
Paper Rope Diameter | Φ2.5-6mm |
Max. Rope Roll Diameter | 300mm |
Max. Paper Rope width | 300mm |
Production Speed | 20-40m/min |
Power Requirements | 220V |
Total Power | 1.5KW |
Total Weight | Approx.700KG |
Overall Dimension | L1580*W1440*H930mm |
